The Control Room and Powerhouse is built 427 m (1,400 ft)(1/4 mi)
inside the base of 8500 ft, Mt. Dubose, in a blasted out granite cavern.
Built in the shape of an arched vault, for strength
700ft long, and 120 ft high,
similar to an old Cathedral shape inside,
future plans to hold a total of 16 generators.
(another source says cavern was 145 ft high, 85 ft wide, and 712 ft long)


All I know, when you are standing in the Powerhouse,
next to one of the generators, the size of this area,
carved out of granite, is hard to fathom.  It is impressive!
A tunnel from the Townsite of Kemano, at 200ft above sea level
leads inside the mountain.


This is a great photo taken by Bud Walker
showing the very beginning of the tunnel
being blasted into Mt. DuBose,
for the Kemano Powerhouse.
The Powerhouse Portal below, was built at this spot.
If you look closely, you can see the Euclid Trucks
used to haul the rock away from inside.

Portal located at 53 deg 33 min 47.43 sec N-
 127 deg, 56 min 33.78 sec W


May 13, 1954
Access Portal under construction


Picture sent by Grant Walker Mar 31, 2016


Completed Kemano Portal,
leading to the tunnel,
which leads to the Powerhouse,
all behind those big grey-white doors.


Photo from inside Company Christmas Card
shows 2 of the Generators

Found a picture that says they were equipped
with "Canadian Westinghouse Rotors".


Taken by Bud Walker in the tunnel
 leading to the Powerhouse
They held a Open House for families
 that never had the opportunity
to get inside before this.


Views of drilling out for the Powerhouse,
International TD24 on left in both pictures


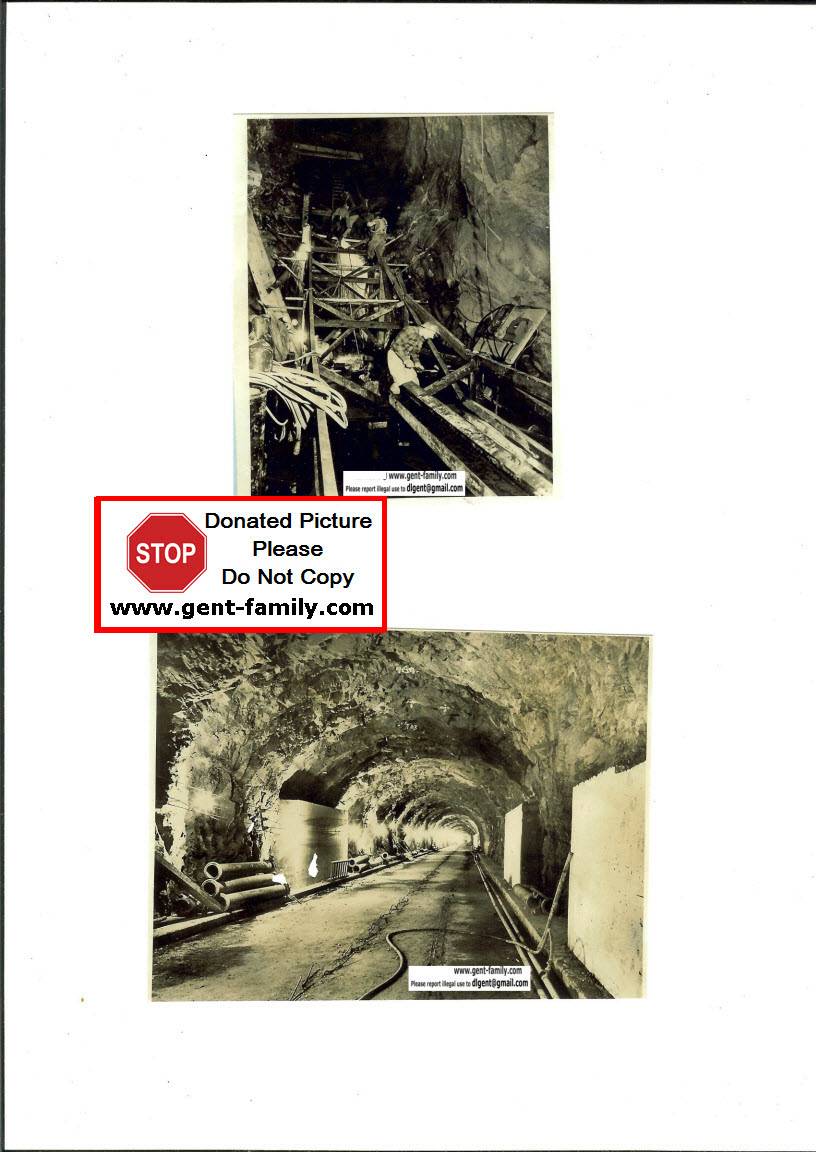

3 Photos showing the construction
of the Powerhouse.
It was blasted out from the roof down.


Top Photo-
Drilling work on the Penstock Tunnels
they were on a 42 deg angle,
pretty tough working conditions!

Bottom photo-
 Access tunnel from Camp 5,
to the Powerhouse, inside the mountain


From a color slide


This is a scanned copy
 of a large picture negative
 (2.25 in x 2.25 in)
taken by an old box type camera,
it is a color picture,
and needs to be printed to fully enjoy it.
stay tuned!

Camp 5, was located in this location
The whole area was controlled
 by the construction company
of Morrison-Knudson from Boise Idaho.
Alcan contracted them to build the tunnel,
and powerhouse.

The plant produces 896 MW of power,
1,200,000 HP, from its eight generators,
 each of which has a capacity of 112MW.
A 16km horseshoe shaped Tunnel 25 ft wide,
the width of a 2 lane highway,
from the 6.5 billion gallon, Nechako reservoir,
created by building the 324 ft high, Kenney Dam,
takes the water 800 vertical meters,
 to the Generator turbines.
It took 20 months
 to build this 10 mi tunnel for the water.
One source I read,
said 16 men died building this tunnel.
I can't find further proof of this, or a list of names.
2-  2500ft head steel penstocks,
 each 4450 ft in length,
were built in the mountain.
The 11ft diam. penstock,
powers BLH Pelton Impulse turbines
built by Baldwin Lima Hamilton, (note 1)
in Pennsylvania, USA.,
The turbines turn at 327.5 rpm.
Referred to as a Hydraulic Penstock design.
First Generator went into operation July 9, 1954.
followed closely by units 2 and 3.
By 1967, 8 units were in operation.

Note 1- In 1951 Lima Hamilton,
merged with Baldwin Locomotive works,
to form BLH.

These were the largest multi nozzle turbines
 at the time.
Vertical, single runner, 4 nozzle types,
designed for 150,000 hp.
they drive directly, 3 phase, 60 cycle,
 13,800 volt generators,
rated at 122,000 kva
The power then feeds a bank of 3,
 Single Phase 89,000 kva transformers.
A 300,000 volt,  4in diameter power cable
with 60lbs / sq in. oil pressure, carries the power
2,000 ft to the surface switchyard.


Early view of Access Tunnel
 to Powerhouse


From a color slide


Another scanned color negative,
this time the Tailrace Tunnel,
and Spillway


Dec 28, 1953
Inside Tailrace Tunnel Section


Nov 14, 1953
 Taking Micrometer readings
 to center Unit 1


Dec 24, 1953
 Removing Stator from Packing
with 225 ton Crane


Dec 7, 1953
 pouring concrete
for the transformer roof


Attaching Shoe to Sole Plate


Apr 30, 1954
welding 13.9 KV
 Aluminum Bus Bars


Battery Room
 for Emergency Lighting
 and Protective Gear
 Apr 30, 1954


Apr 10, 1954
 Control Room Construction


Thomas Raymond "Bud" Walker,
2nd man from left,
others unknown


Albert (Al) James Brown Family
in front of the unfinished Access Tunnel
 to the Powerhouse
l/r- Lois his wife, Al, 2 Brown sons,
Dave Brown and Chris Brown.
 Ayce Walker, rest unknown



Early Excavation picture
of the Kemano Powerhouse
courtesy Grant Walker
